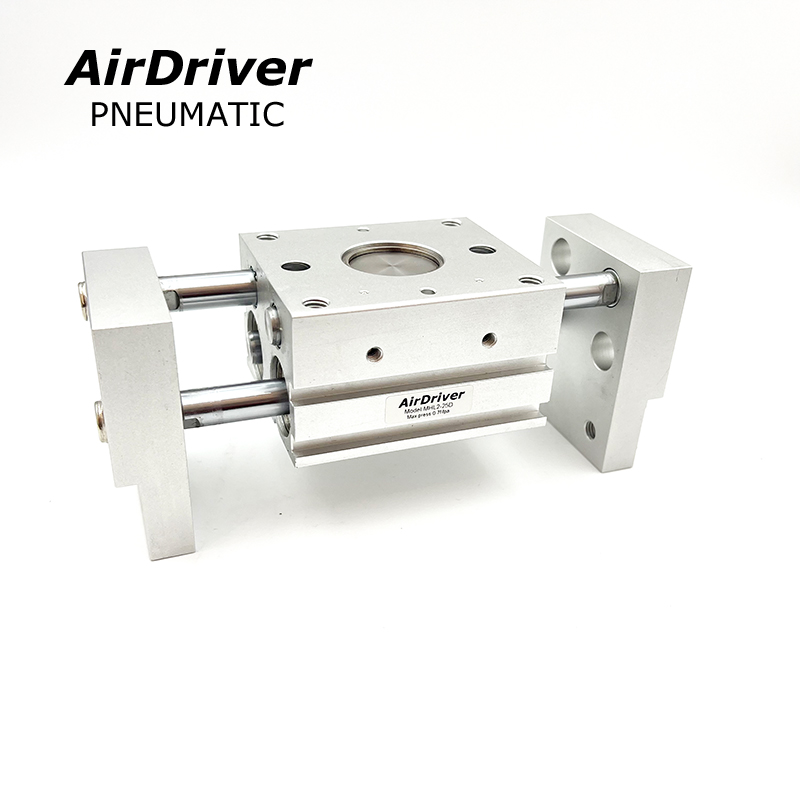

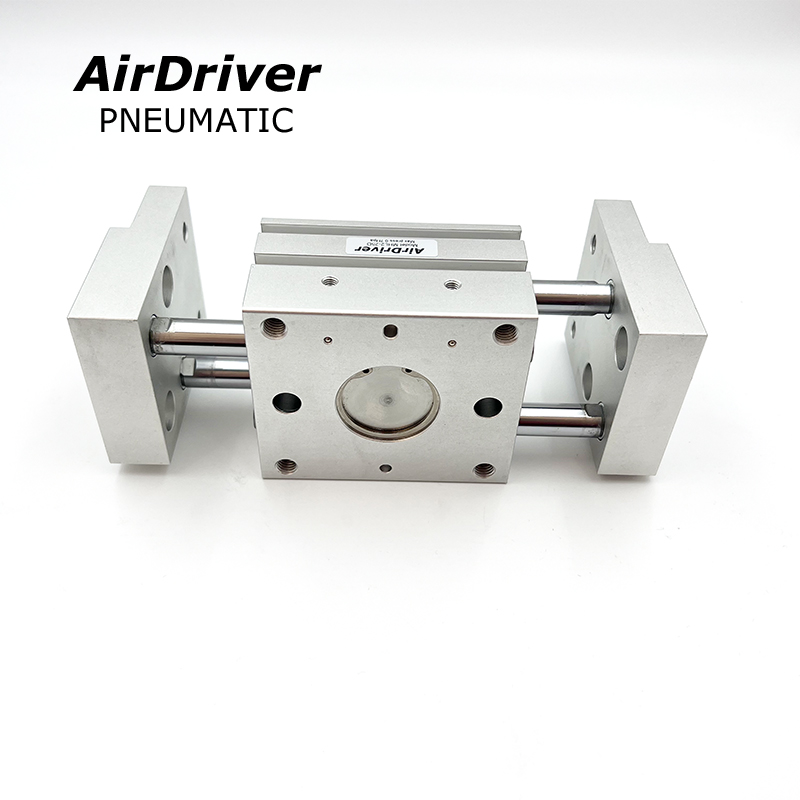

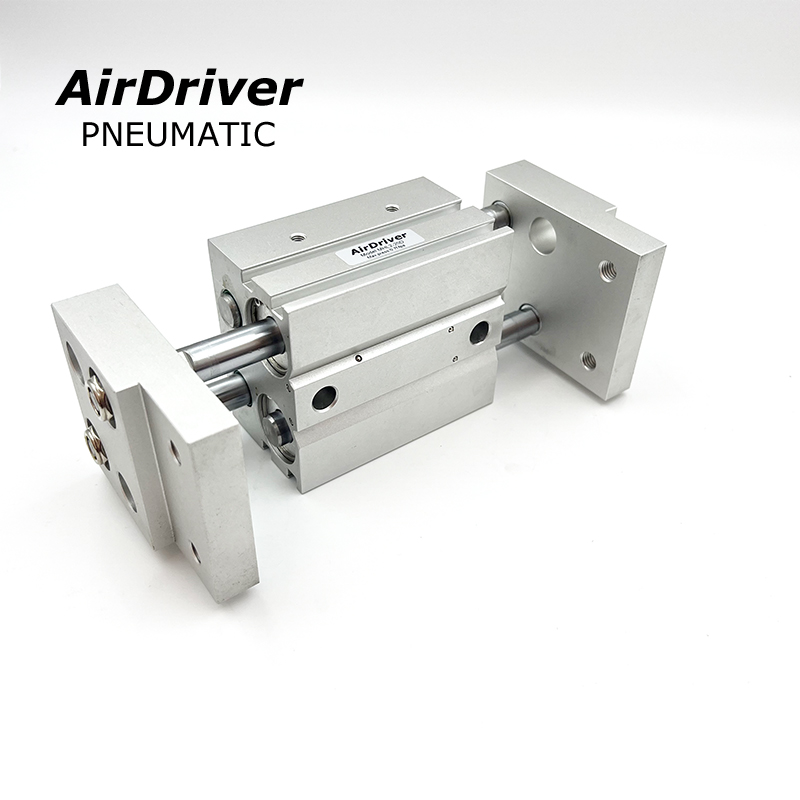

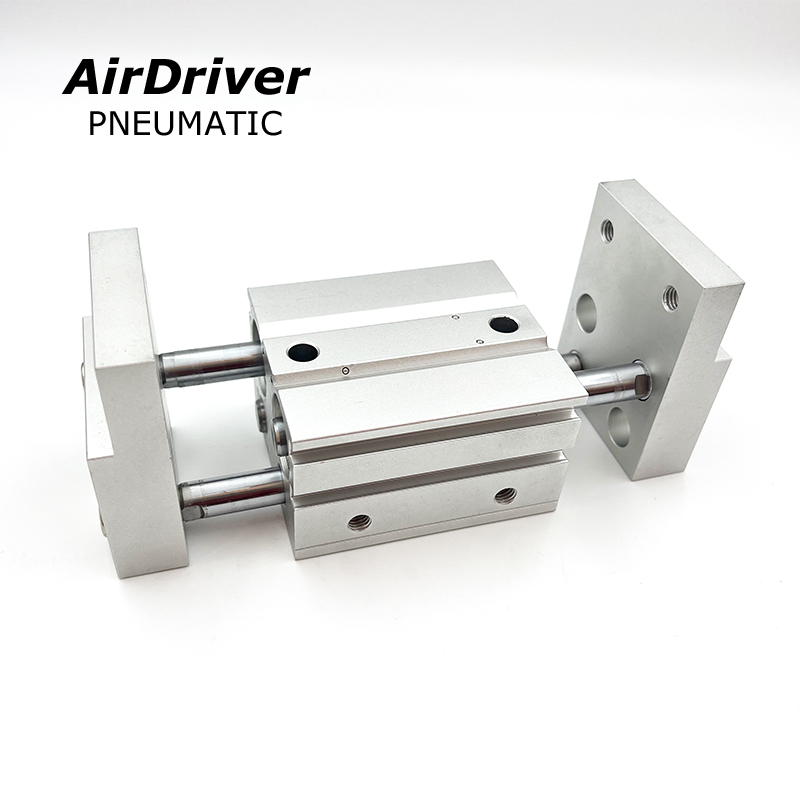

MHL Series SMC Model Wide Type Parallel Style Air Gripper

Bore size (mm)	10	16	20	25	32	40
Fluid	Air
Action type	Double acting
Minimum operating pressure	0.15MPa	0.10MPa
Maximum operating pressure	0.60MPa
Ambient and fluid temperature	-10 to 60°C
Repeatability	±0.1mm
Retention N	14	45	74	131	228	396
Port Size	M5x0.8				Rc 1/8

Get A Quote

Details
