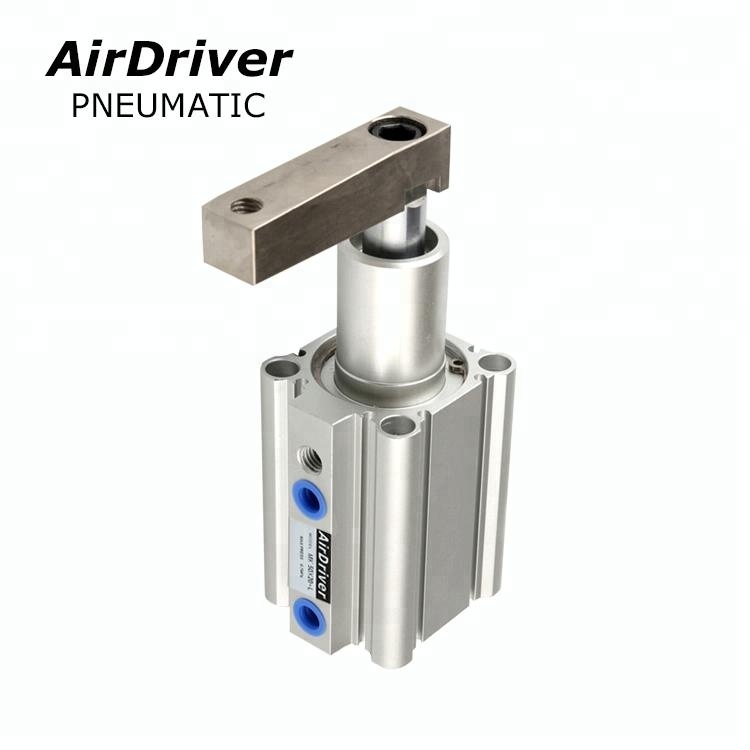

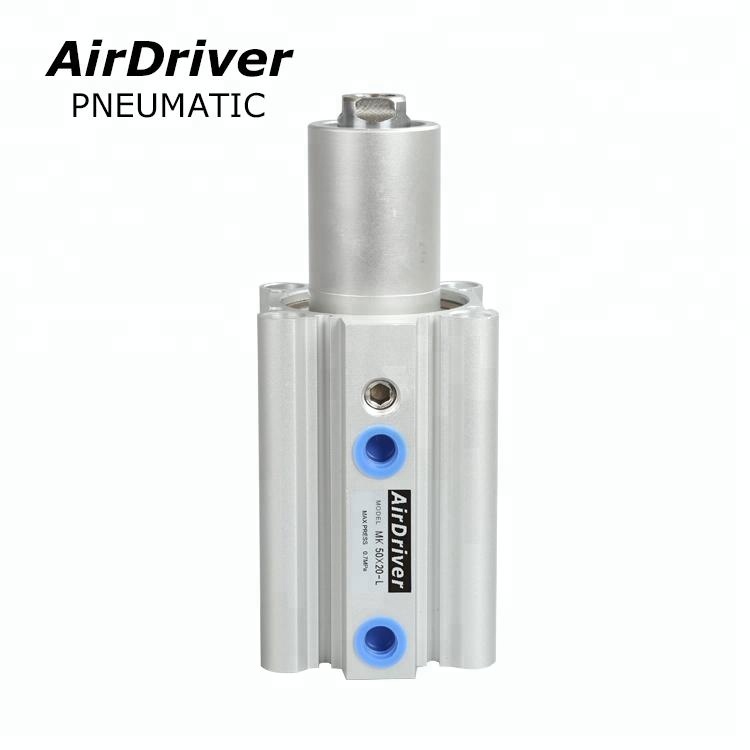

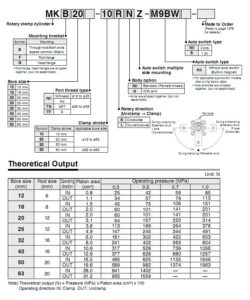

MKB Series Rotary-Clamping Pneumatic Cylinder

Bore Size(mm)

12

16

20

25

32

40

50

63

Acting

Double acting

Back-Rotation Angle

90°± 10°

Back-Rotation Direction

Left(Counterclockwise) , Right(Clockwise)

Back-Rotation Distance

7.5mm

9.5mm

15mm

19mm

Clamping Distance

10,20,30mm

10,20,30,50mm

Allowed Bending Torque(N.m)

1

3.8

7

13

27

47

107

182

Theoretical Clamp Force(N)

40

75

100

185

300

525

825

1400

Working Fluid

Cleaned Air

Proof  Pressure

1.5 Mpa

Working Pressure

0.1~1Mpa

0.1~0.6Mpa

Fluid Temperature

With magnetic switch:-10~+60℃(No freezing),   Non-magnetic switch:-10~+70℃(No freezing)

Lubrication

No need

Piping Port Size

M5*0.8

G1/8″

G1/4″

Mounting

Through-hole/ Both ends tapped common /Head flange

Buffering

Rubber bumper

Stroke Length Tolerance

+0.6mm   ~  -0.4mm

Piston Speed

50-200mm/s

Non-Rotation  Piston Rod Accuracy

±1.4°

±1.2°

±0.9°

±0.7°
