| HOW TO ORDER: | Bore Size | Rotary Angle | Magnet | ||

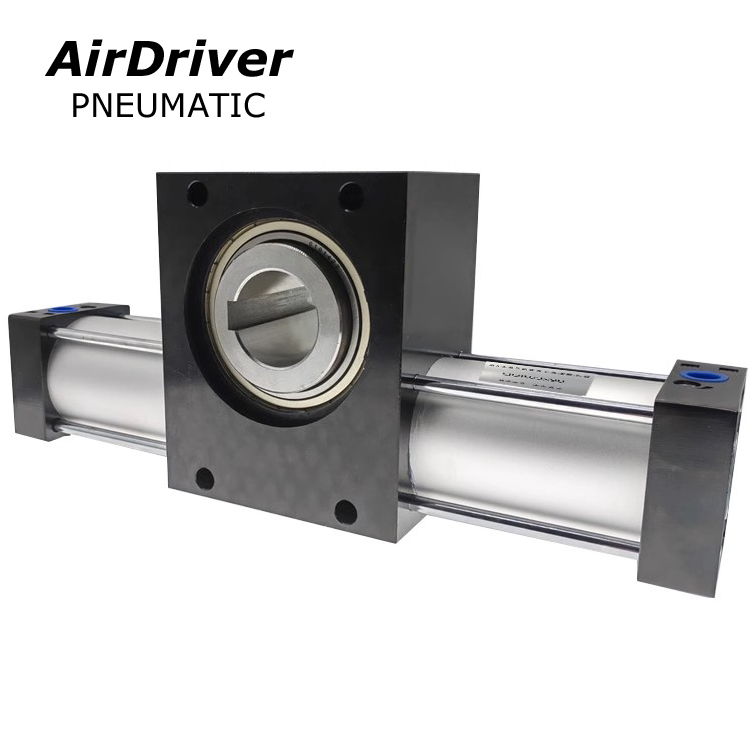

| QGK (Standard Model) | 63 | X | 90 | – | S |
| QGKJ (Rotary Angle Adjustable) | |||||
| Example: QGKJ100X180-S | |||||

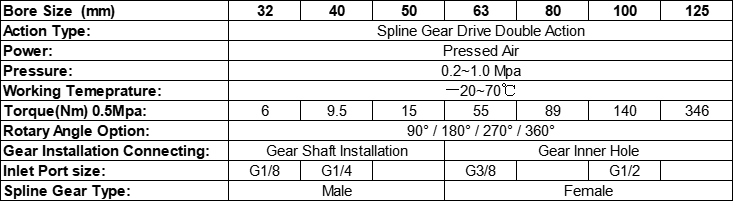

| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Action Type: | Spline Gear Drive Double Action | ||||||
| Power: | Pressed Air | ||||||
| Pressure: | 0.2~1.0 Mpa | ||||||
| Working Temeprature: | 一20~70℃ | ||||||
| Torque(Nm) 0.5Mpa: | 6 | 9.5 | 15 | 55 | 89 | 140 | 346 |
| Rotary Angle Option: | 90° / 180° / 270° / 360° | ||||||
| Inlet Port size: | G1/8 | G1/4 | G3/8 | G1/2 | |||
| Spline Gear Type: | Male | Female | |||||
