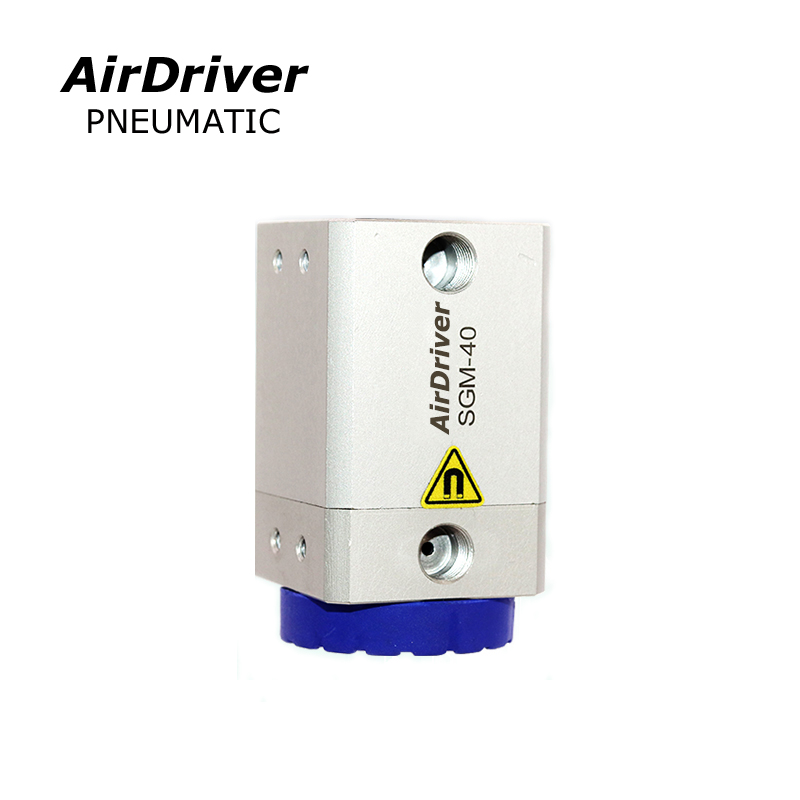

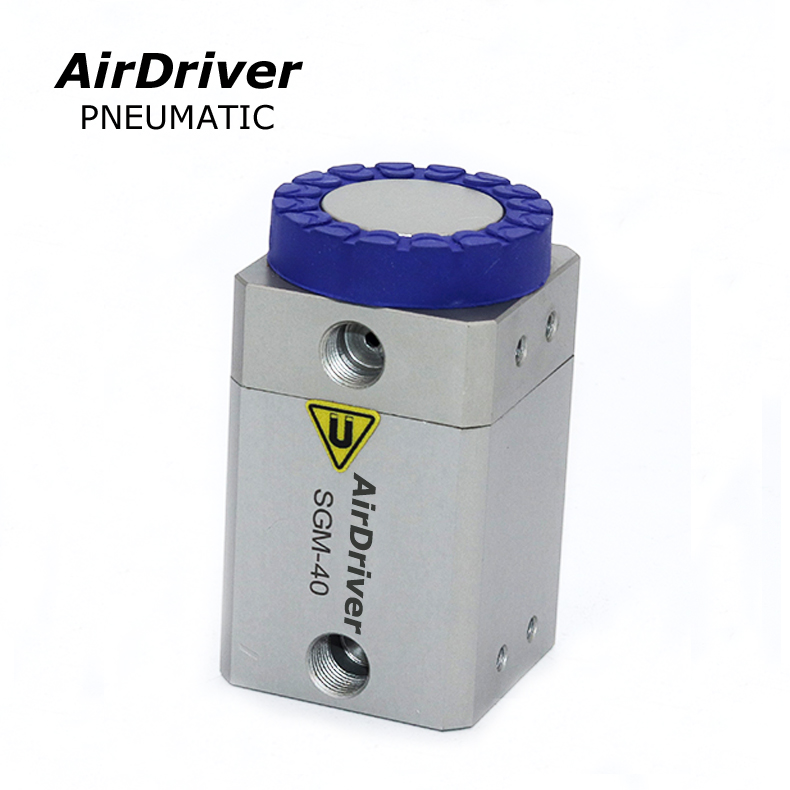

SGM Magnet Gripper Suit for Steel Pallet

Details

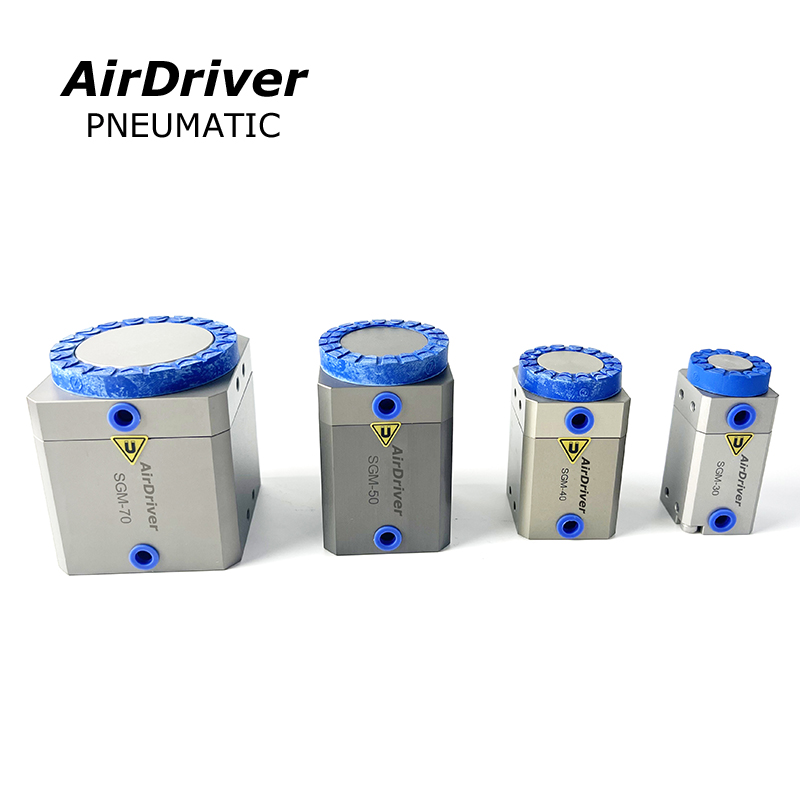

Model:	Holding force:	Residual holding force:	Operating pressure:	Operating temperature:
SGM-30	35N	0.3N or less	0.35~0.6 Mpa	5~70℃
SGM-40	100N
SGM-50	180N
SGM-70	290N
*theoretical holding force when a low carbon steel plate is held by entire surface attraction surface
*tested by workpiece thickness 2mm
