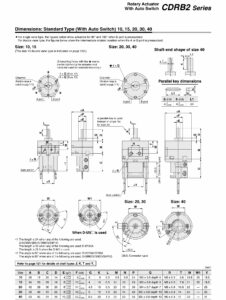

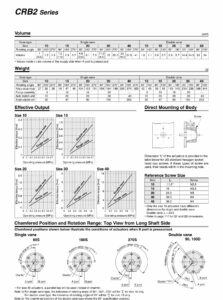

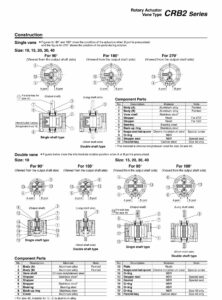

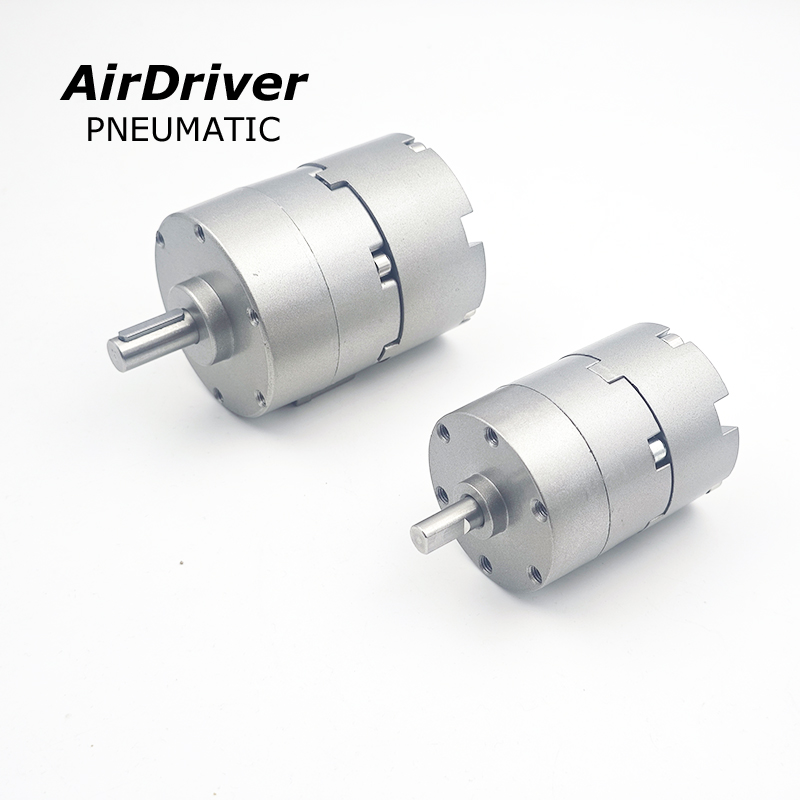

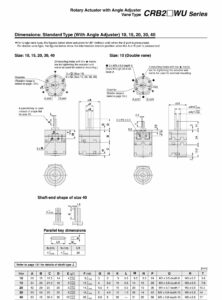

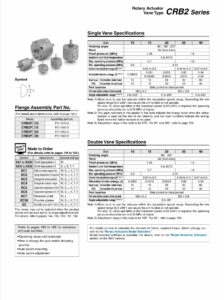

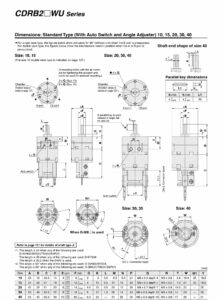

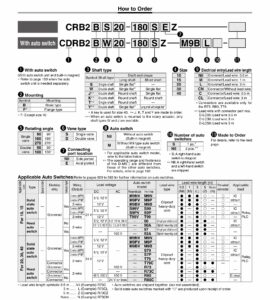

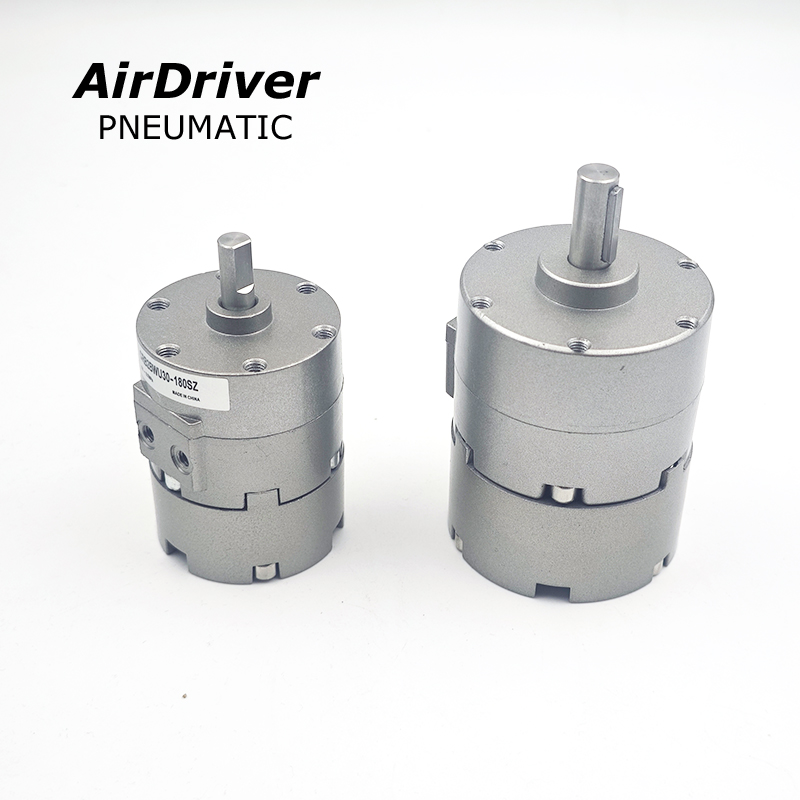

Vane Type CRB2 Series Pneumatic Rotary Actuator

High Frequency Solenoid Valve

Compact Model Suit For Smaller Space Mounting.ZDBF-10 Model

Allows for the transfer of unstableworkpieces such as film-packagedliquids or powders

CJP Pin Cylinder Single Action Spring ReturnThe installation space can be significantlyreduced because this cylinder can berecessed directly into a machine body orinstalled on a panel. Thus, the machinecan be made more compact

・Easy element replacementThe element and the bowl are integrated. Replacement can be done inhand.・Energy-saving regulator Pressure drop: Max. 50% improvement・Reduced required maintenance space: Max. 46% reduction・Better visibility&increased safetyThe bowl is covered with a transparent bowl guard.

.1.5 fold round corrugated suction cup for high dynamic handling ofhigh temperature metal sheets up to 250 °C;. Handling pre-formed sheet metal parts with a corrugated shape foroptimum adaptability;.Unloading after forming the part;.Carrying thin aluminum without deformation and deep drawing..Used in automotive industry, such as press line feeding systems.

PZA    8①      ②①Model:PZA②Tube Out Diameter(mm)

DA: Double ActionSR: Single Action Spring Return

Manual Control Valve

Download Whole catalogue to see all Interchangeable with SMC Type Fittings

Air Cylinder: SMC Standard TypeDouble Acting, Single Rod

Working Pressure: 0~0.95MpaWorking Temperature: -5~60℃
