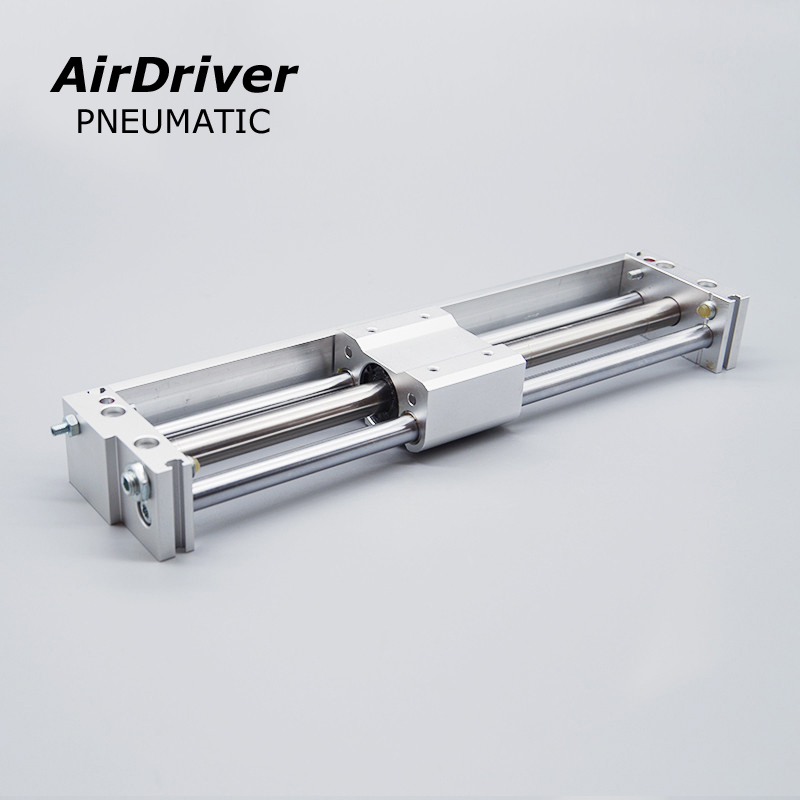

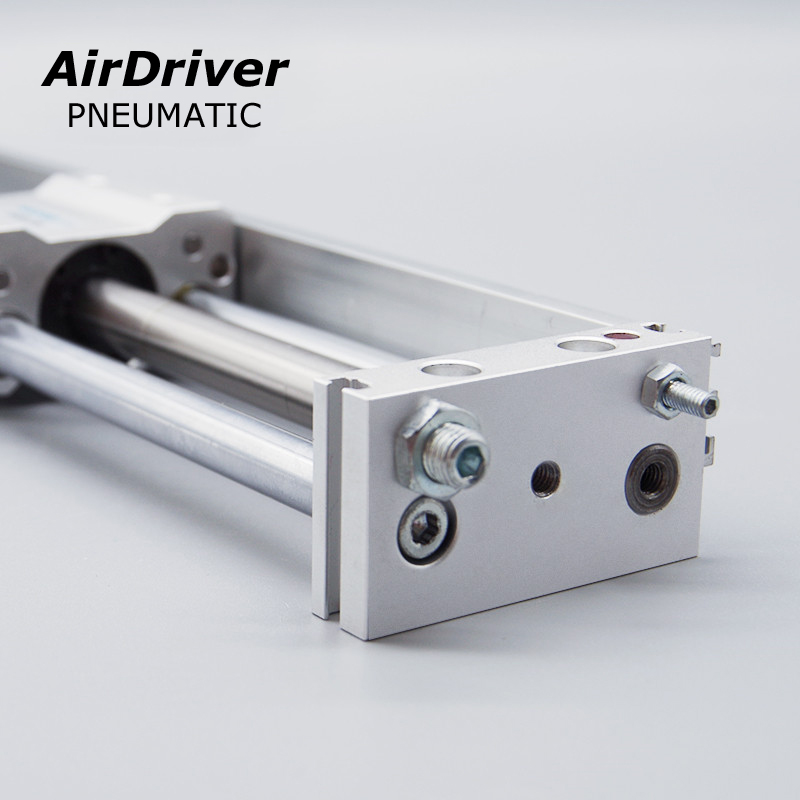

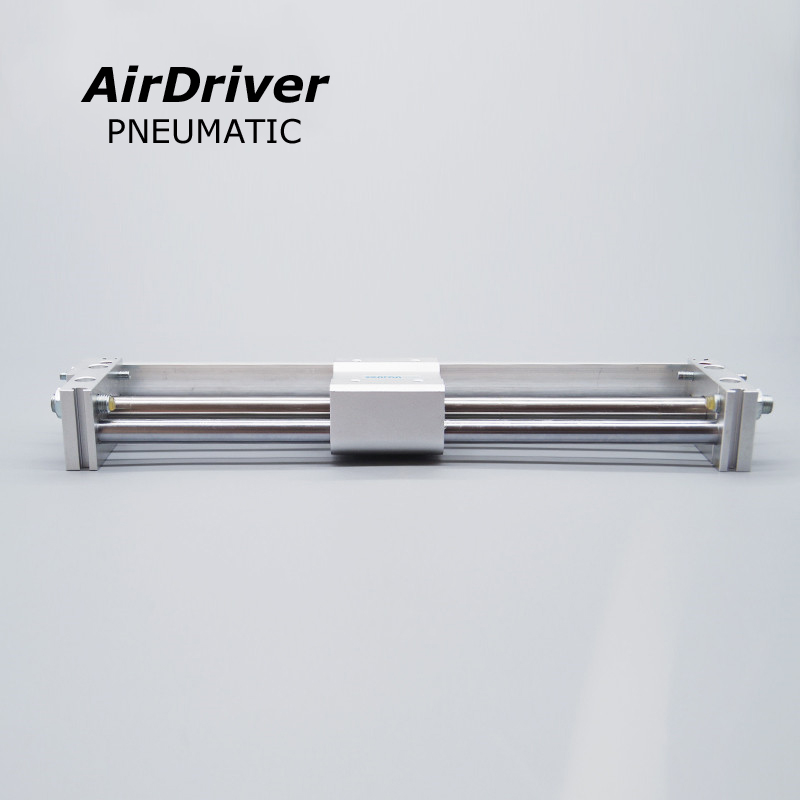

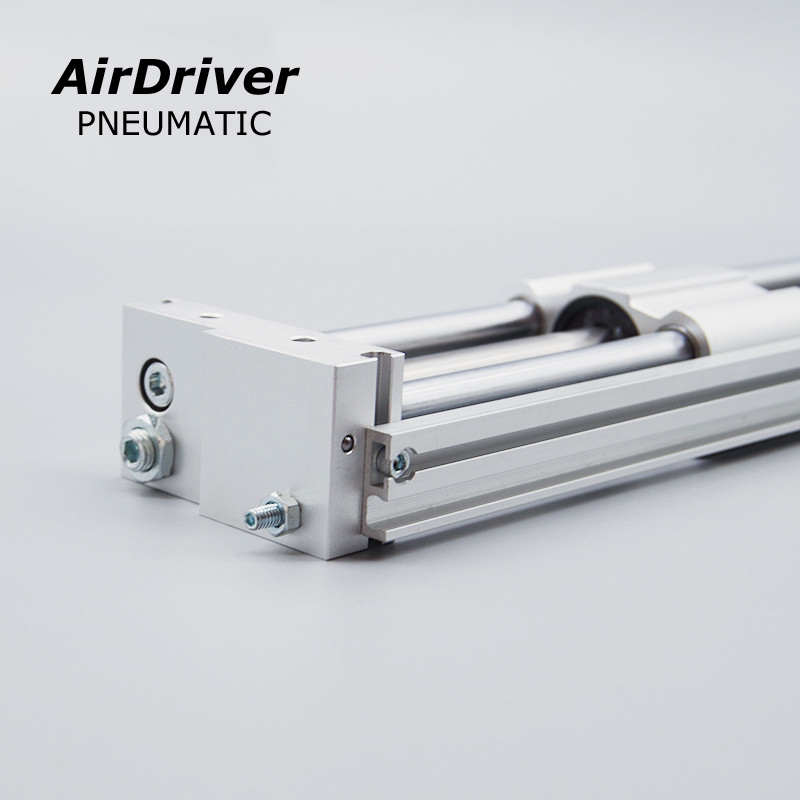

CY1L Series Magnetically Coupled Rodless Cylinder

Details

WE ARE HERE TO SUPPORT YOU!

Further information or a personal consultation? Our products and know-how are there to provide solutions.

3V Series 3/2way Solenoid Valve

220V AC / 24V DC Options

TN Series AirTac Model Daul-Rods Actuator

TNJ-Travelling adjustable customzing available

CJP Pin Cylinder Single Action Spring Push Back

CJP Pin Cylinder Single Action Spring ReturnThe installation space can be significantlyreduced because this cylinder can berecessed directly into a machine body orinstalled on a panel. Thus, the machinecan be made more compact

MXS Series SMC Model Air Slide Table

Bore size (mm)	6	8	12	16	20	25
Piping port size	M3 x 0.5	M5 x 0.8			Rc 1/8, NPT 1/8, G 1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s
Cushion	Rubber bumper (Standard, With stroke adjuster)Shock absorber (Optional)
Lubrication	Non-lube
Auto switch (Optional)	Reed auto switch (2-wire, 3-wire)Solid state auto switch (2-wire, 3-wire)2-color indication solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	+1~0 mm

SC Series AirTac Model Pneumatic Cylinder

Good quality AirTac Model SC Series Pneumatic Cylinder.With Magnet, SCJ Stroke Adjustable and others Customizing Options

5V Series High Frequency Solenoid Valve

High Frequency Valve, 15times circles per second

ZP Seires SMC Model Vacuum Suction Pad with Adapter

More Pad Sizes Option

DMF Series Pulse Valve

Voltage Option: AC110V /AC 220V /DC 24VWorking Pressure: 0~1.0Mpa

SMC Model New Design Modular AW Units Regulator+Filter

・Easy element replacementThe element and the bowl are integrated. Replacement can be done inhand.・Energy-saving regulator Pressure drop: Max. 50% improvement・Reduced required maintenance space: Max. 46% reduction・Better visibility&increased safetyThe bowl is covered with a transparent bowl guard.

2W Series One Direction Solenoid Valve

Suitable Fluid: Air/Water/Oil

ZWSA Series Suction Cup with Traveling Model Vacuum Gripper

Buffer Traveling Stroke Options: 10mm,20mm,30mm,50mmOrdering Code Example:ZWSA.42.130X310.ES.L2.J50

QGBD Seires Pneumatic Lifting Table Guide Cylinder

Bore Size	QGBD63		QGBD80
Regular Stroke	40MM	50MM	40MM	50MM
Max Loading	75KGS		150KGS
Max Pressure	1.0Mpa
Magnet Built	Optional
