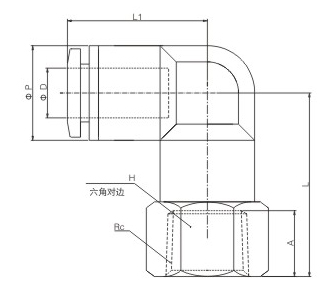

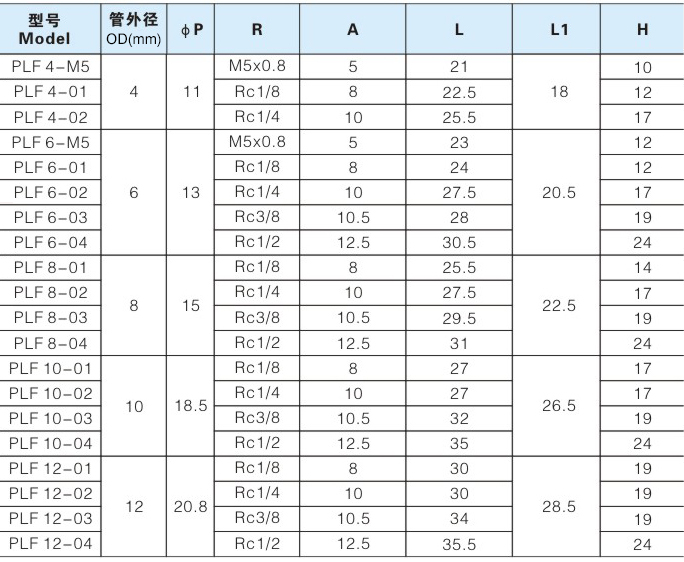

PLF Female Thread One Touch Connect Fitting

SDA Series AirTac Model Compact Cylinder

-S with Magnetic-B Male Thread Rod End

MXH Series SMC Model Compact Slide Cylinder

With new high rigiditylinear guide

CY1S Series Magnetically Coupled Rodless Cylinder

Totally replace SMC ModelSlider Type: Slide Bearing

ITV Series SMC Model Electro-Pneumatic Regulator / High Flow Rate

・For the stepless control of air pressure in proportion to electrical signals・Flow rate: Max. approx. 5 times (Compared with the existing model)・Sensitivity: ±0.2% F.S. or less・Linearity: ±1% F.S. or less・Hysteresis: 0.5% F.S. or less

DMF Series Pulse Valve

Voltage Option: AC110V /AC 220V /DC 24VWorking Pressure: 0~1.0Mpa

ZH Series SMC Model Vacuum Generator

One touch connect & Thread port connect

Rolling-Over Cylinder For Robot Gripper Installing Robot Arm Front End Accessory

90° Roll over

MXS Series SMC Model Air Slide Table

Bore size (mm)	6	8	12	16	20	25
Piping port size	M3 x 0.5	M5 x 0.8			Rc 1/8, NPT 1/8, G 1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s
Cushion	Rubber bumper (Standard, With stroke adjuster)Shock absorber (Optional)
Lubrication	Non-lube
Auto switch (Optional)	Reed auto switch (2-wire, 3-wire)Solid state auto switch (2-wire, 3-wire)2-color indication solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	+1~0 mm
